The Role of Chillers and Hopper Dryers in Blow Molding and Injection Blowing: Why They Are Essential
In the blow molding and injection blow molding industries, apart from the well-known blow molding machines and injection molding machines, many auxiliary machines also play important roles, such as industrial chiller and hopper dryer. These machines are not optional—they are critical for maintaining material integrity, optimizing cycle times, and preventing defects. This article explains why chillers and dryers are indispensable in blow molding processes, how to select the right models, and what other equipment complements a production line.
The Role of Industrial Chillers in Blow Molding
Function:
Industrial chillers regulate the temperature of molds and cooling systems during blow molding. They ensure rapid and uniform cooling of molten PET or other polymers, stabilizing the final shape of bottles, containers, or automotive parts.
Key Benefits:
Prevents Deformation: Without proper cooling, plastic parts may warp or shrink unevenly. Chillers maintain mold temperatures within ±1°C, ensuring dimensional accuracy.
Reduces Cycle Time: Faster cooling allows quicker mold release, boosting production speed. For example, PET bottles cool in 8–12 seconds with a chiller, compared to minutes with ambient cooling.
Enhances Surface Quality: Controlled cooling minimizes surface defects like flow marks or bubbles, critical for transparent packaging.
How It Works:
Chillers circulate chilled water (typically 5–25°C) through mold channels. In blow molding, after high-pressure air expands the preform, the chiller rapidly extracts heat, solidifying the bottle’s shape. Advanced systems use dual cooling circuits for molds and hydraulic systems, improving energy efficiency

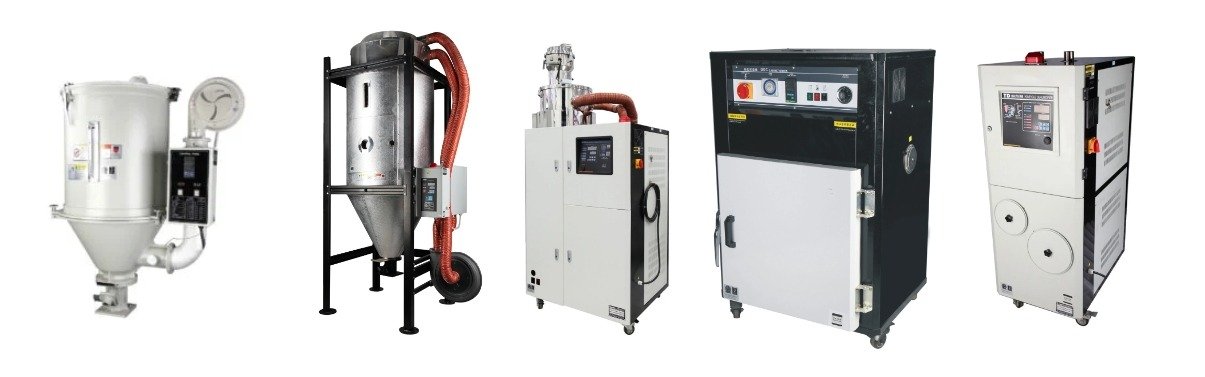

The Role of Hopper Dryers in Blow Molding
Function:
Hopper dryers remove moisture from plastic resins before processing. Polymers like PET, nylon, and PC are hygroscopic—absorbing moisture from the air—which can degrade material properties if not dried.
Key Benefits:
Prevents Defects: Moisture causes bubbles, silver streaks, or weak spots in finished products. Dryers reduce humidity to <50 ppm, eliminating hydrolysis (water-induced polymer breakdown).
Improves Material Strength: Dry resins melt uniformly, enhancing tensile strength and barrier properties (e.g., for fuel tanks or chemical bottles).
Energy Savings: Modern vacuum dryers (e.g., Maguire’s VBD series) use 60% less energy than desiccant models and cut drying time by 80%.
How It Works:
Dryers heat resins to 120–180°C, evaporating moisture. Some systems combine desiccant beds and hot air, while vacuum dryers lower the boiling point of water for faster drying. For PET, optimal drying takes 4–6 hours at 150°C to achieve <0.02% moisture content
How to Select Industrial Chiller and Hopper Dryer
Choosing a Chiller
Cooling Capacity: Match the chiller’s BTU/hr rating to the heat load. For a 20L blow molding machine, a 10–15 HP chiller is typical.
Energy Efficiency: Opt for inverter-driven compressors and variable-speed pumps to reduce power consumption by 30%.
Temperature Control: Look for ±0.5°C precision and corrosion-resistant materials for harsh environments.
Scalability: Modular designs allow adding capacity as production grows.
Choosing a Hopper Dryer
Throughput: Dryers like the VBD 300 handle 136 kg/hr, ideal for high-volume lines.
Drying Technology: Vacuum dryers suit moisture-sensitive resins (e.g., PET), while desiccant dryers work for PP or HDPE.
Automation: Touchscreen controls and IoT connectivity enable real-time humidity monitoring.
Footprint: Compact, vertical dryers save floor space in crowded facilities.
Auxiliary Equipment for a Complete Blow Molding Line
Beyond chillers and dryers, a robust production line requires:
Air Compressors: Generate high-pressure air (25–40 bar) for blowing. Oil-free models prevent contamination.
Mold Temperature Controllers: Maintain consistent mold temps for complex geometries.
Auto Loaders: Feed preforms or resins into the hopper, reducing manual labor.
Quality Inspection Systems: Vision cameras or leak detectors spot defects early.
Granulators: Recycle scrap plastic into reusable pellets, cutting material costs by 15–20%.
Future Trends: Smarter, Greener Solutions
Energy Recovery: Chillers with heat-reclaim systems reuse waste heat for drying or facility heating.
AI-Driven Dryers: Predictive algorithms adjust drying parameters based on resin moisture sensors.
Lightweight PET: Advanced cooling enables thinner bottle walls (reducing plastic use by 30%) without sacrificing strength.
Need Help Optimizing Your Setup? Consult suppliers for tailored solutions—whether you’re molding 500ml bottles or 20L industrial containers!
