3 in 1 Bottle Blowing Filling Capping Machine

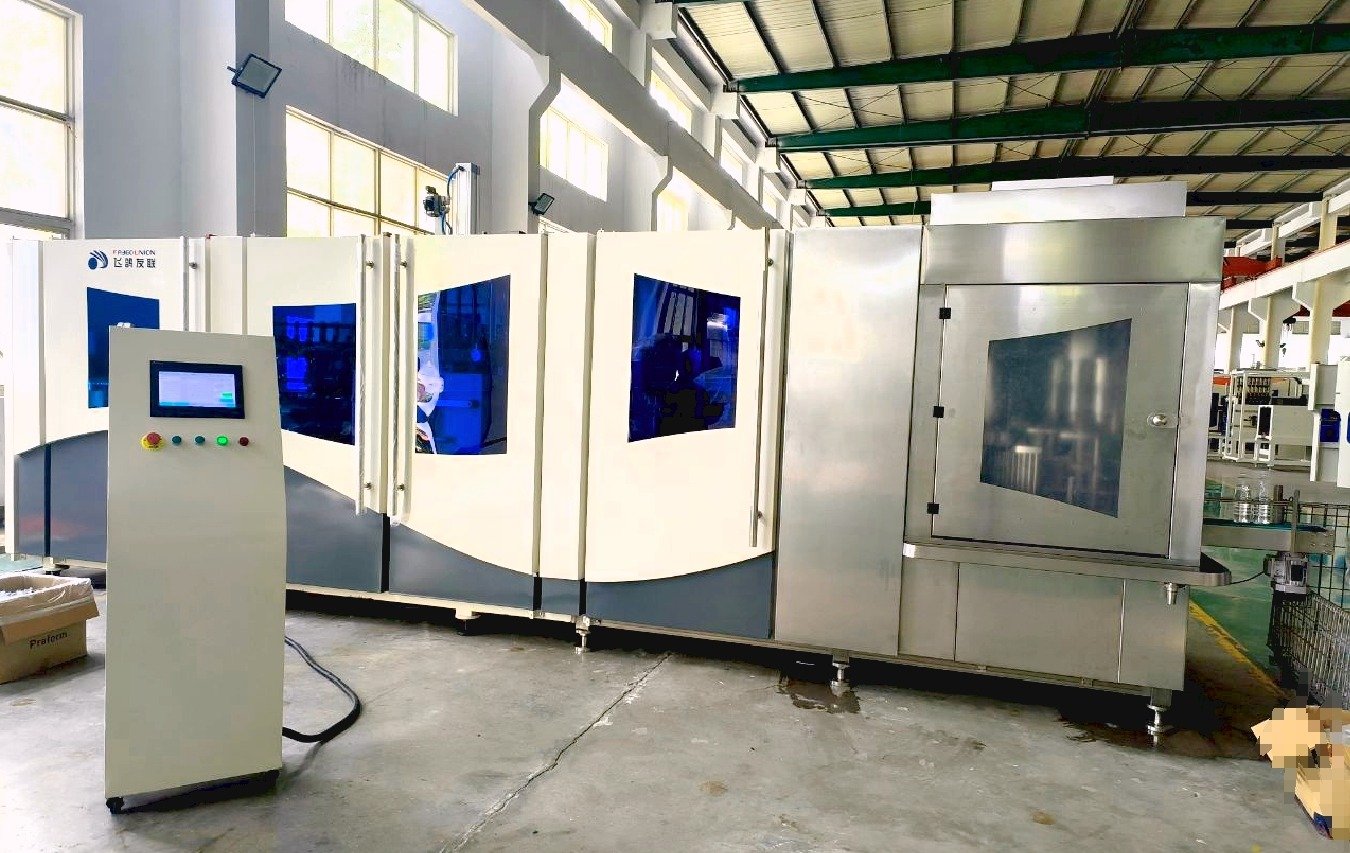

This is a linear blowing-filling-capping 3 in1 combi block machine, with an hourly output of 10,000 to 24,000. The modular combination method is energy-saving, power-saving, easy to change molds and requires less maintenance. The whole machine is compact and occupies a small area, which is very suitable for the needs of small and medium-sized beverage filling enterprises. It takes low cost, low water and electricity consumption and few space occupation into consideration at the beginning. CGX6-16-8 machine length is only 7 meters, width is only 1.6 meters.

Three-in-one blowing-filling-sealing machines are popular in the beverage industry, particularly for the production of carbonated drinks. As they offer a streamlined and efficient process for producing and packaging large quantities of products. The integration of the three functions results in a continuous and automated production process, reducing the need for manual intervention and increasing productivity.

Key Functions

• Blow Molding: The machine features a linear (preform) feeding system and a down-blowing technique that protects bottle necks from heat deformation during infrared heating.  A servo-mechanical hand ensures precise and synchronous picking of preforms and bottles.

• Precise Filling: Equipped with advanced filling valves (e.g., flow meters) for accurate liquid filling, ensuring consistent fill levels.

• Cap Sealing: Integrated rotary capping head securely applies and tightens caps onto the filled bottles.

• Automated Control: The entire process is managed by a centralized PLC control system, often with a human-machine interface (HMI), allowing for easy operation, monitoring, and troubleshooting

Applications

This versatile machine is suitable for packaging various liquid products in PET bottles, including:

• Water: Still mineral water, purified water.
• Beverages: Carbonated drinks, juices, teas.
• Others: Edible oils and other liquids

Advantages & Benefits

• Space Saving & Integrated Design: Eliminates need for separate conveyors, empty bottle handlers, and accumulators, reducing the production line footprint.
• Improved Efficiency: Synchronized operations improve overall equipment effectiveness (OEE) and throughput.
• Energy Saving: Energy-efficient heating, optimized airflow, and reduced power for conveyors lead to lower operating costs.
• Lower Comprehensive Cost: Reduced energy consumption, simpler operation, and easier maintenance contribute to lower overall production costs.
• Ease of Operation & Maintenance: User-friendly interface and use of standardized components simplify operation and upkeep

Faygo Union’s  linear blowing-filling-capping 3 in1 combi block machine can be configured with different numbers of bottle filling nozzles to suit different production requirements, and different bottle sizes, shapes, and capacities can also be accommodated. The machine can be controlled by a programmable control system that monitors and controls the entire process. Enabling the operator to adjust and fine-tune different settings to optimize production efficiency and output.
