What Machines Are Needed to Make PET Bottles? A Complete Guide to Building a PET Bottle Production Line
PET (Polyethylene Terephthalate) plastic bottles dominate industries from beverages to cosmetics due to their lightweight, durability, and recyclability. But how are these bottles made? Whether you’re a startup or an established manufacturer, understanding the machinery needed to produce PET bottles is critical. This guide breaks down essential equipment, costs, applications, and future trends—helping you build a streamlined, cost-effective PET bottle production line.
Key Machines Required for PET Bottle Production
A complete PET bottle production line involves several core machines working together. Let’s explore each one:
Here is a Comprehensive Comparison about One-stage vs Two-stage Bottle Blowing Machines
Injection Molding Machine (Optional for Preform Production)
Purpose: Creates PET preforms—the “test tube” blanks used to make bottles.
How It Works: Melts PET resin and injects it into preform molds.
Why It’s Optional: Small-scale producers often buy preforms from suppliers to save costs.
Output: 1,000–5,000 preforms/hour (depending on cavity count).
Preform Loader (Feeder)
Purpose: Automatically transfers preforms into the blow molding machine.
Types: Rotary or linear feeders.
Key Benefit: Reduces manual handling and contamination risks.
PET Blow Molding Machine
Purpose: Transforms preforms into finished bottles using stretch blow molding.
Process:
Heating: Preforms are heated to 100–120°C.
Stretching: A rod elongates the preform vertically.
Blowing: High-pressure air (25–40 bar) expands it into the mold shape.
Types: Semi-Auto Blowing Machine; Fully-Auto Blowing Machine
Air Compressor
Purpose: Supplies high-pressure air (up to 40 bar) for blowing bottles.
Specs: Oil-free compressors are preferred to avoid contaminating bottles.
Chiller (Cooling System)
Purpose: Cools molds and stabilizes bottle temperature post-blowing.
Importance: Ensures consistent bottle shape and prevents deformation.
F. Auxiliary Equipment
Conveyors: Transfers bottles to labeling/packaging stations.
Quality Check Systems: Vision cameras or leak detectors for defect screening.
Budget Breakdown: Cost of a PET Bottle Production Line
Costs vary based on automation level, output, and whether preforms are made in-house. Below is a rough estimate:
| Machine | Price Range | Notes |
|---|---|---|
| Injection Molding Machine | 120,000 | Skip if buying preforms. |
| Blow Molding Machine | 8,000100,000 | High speed machines cost more. |
| Preform Loader | 8,000 | Linear feeders are cheaper. |
| Air Compressor | 18,000 | Oil-free models cost 20–30% more. |
| Chiller | 8,000 | Depends on cooling capacity. |
| Total cost | 0,000 | Output: 800–15,000 bottles/hour. |
Additional Costs:
Molds: 8008,000 per design (bottle shape/size).
Maintenance: 3–5% of machine cost annually.
Utilities: Electricity (30/hour) and compressed air.
Applications & Advantages of PET Plastic Bottles
Key Applications
Beverages: Water, soda, juices (70% of PET use).
Food: Cooking oil, sauces, salad dressings.
Cosmetics: Shampoo, lotion, perfume bottles.
Pharmaceuticals: Syrup, vitamin, and disinfectant containers.
Why PET Dominates the Market
Lightweight: 30% lighter than glass, reducing shipping costs.
Recyclable: PET is 100% recyclable (code #1).
Transparency: Glass-like clarity for product visibility.
Safety: FDA-approved for food contact; won’t react with contents.
Durability: Shatterproof and leak-resistant.
Future Trends in PET Bottle Production
A. Sustainability Push

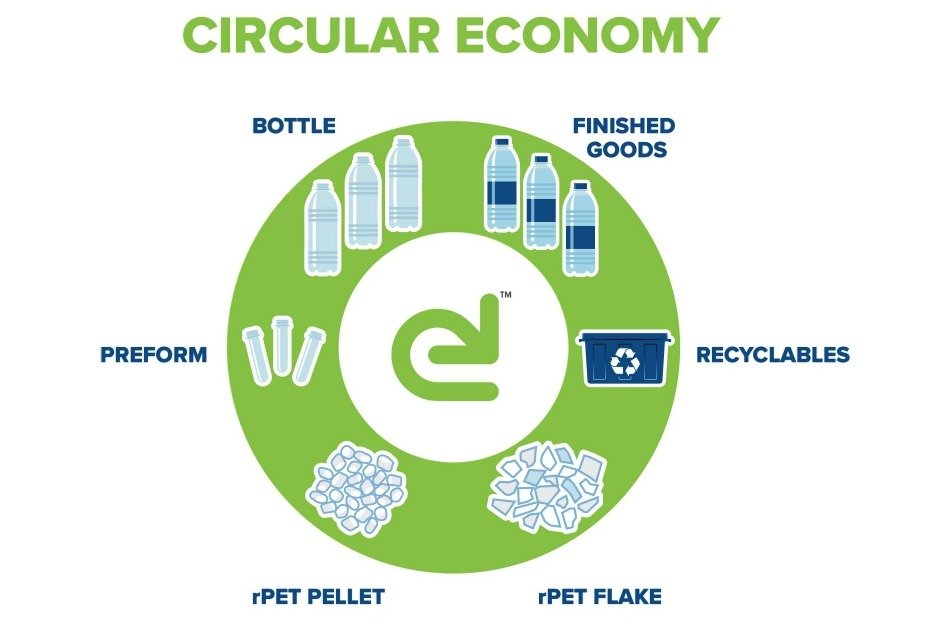

rPET (Recycled PET): Brands like Coca-Cola aim for 50% rPET in bottles by 2030.
Lightweighting: Thinner walls (e.g., 8.5g vs. 12g for 500ml bottles) to reduce plastic use.
B. Smart Manufacturing
IoT Integration: Real-time monitoring of machine performance and predictive maintenance.
Energy-Efficient Machines: Solar-powered compressors and heat recovery systems.
C. Customization & Flexibility
Quick Mold Changes: Modular molds allow small batches (e.g., seasonal designs).
Hybrid Materials: PET blended with biodegradable additives for compostable options.
D. Regional Growth
Asia-Pacific Demand: Rising bottled water consumption in India and China drives machinery sales.
Conclusion: Building Your PET Bottle Production Line
From blow molding machines to chillers, each piece of equipment plays a vital role in creating high-quality PET bottles. While initial costs can be steep, focusing on energy-efficient, modular systems (like two-stage blow molders) ensures long-term ROI. As sustainability and customization reshape the industry, investing in upgradable machinery will keep your business competitive.
Need Help Choosing Machines? Contact suppliers for tailored solutions—whether you’re bottling 1,000 or 50,000 units per hour!
FAQ Section
Q1: Can I start a PET bottle line without an injection machine?
A: Yes! Many small producers buy preforms to save upfront costs.
Q2: How long does a blow molding machine last?
A: 10–15 years with proper maintenance.
Q3: What’s the minimum factory space required?
A: 200–500 m² for a compact line (excluding storage).
Q4: Are PET bottles safe for hot liquids?
A: No—PET softens above 70°C. Use PP or PC for hot fills.
